A customizable containerized seismic system designed to manage up to one million nodes, offering unmatched scalability and flexibility for diverse project needs.
High-density data is the key to high-resolution seismic imaging. Gathering that data on land presents unique challenges and all too often there’s a fine balance to be had between cost, logistics, and survey density, in addition to the difficulty of working in complex terrains.
Discover how our ground-breaking nodal technology and scalable charging/harvesting systems can help you acquire high-resolution seismic while lowering costs, reducing crew size and logistics, and fast-tracking land seismic surveys.
The STRYDE Pro System™ is customizable, modular, and scalable, with capacity to handle up to one million nodes—enabling cost-effective, high-density, and large-scale seismic surveys at high speed.
A dedicated container for node charging, harvesting, and testing. Designed for efficient operation by a single person, 20,000 nodes can be cycled in 24 hours by one operator. When an additional MNDU container is added, up to 40,000 nodes can be cycled per day.
A dedicated container housing operator workspace, including workstations, servers, and data storage, providing a comfortable environment for data management and QC tasks.
A dedicated container for node cleaning. Designed for efficient operation by a single person, up to 40,000 nodes can be cleaned in 24 hours by one operator.
A complete land seismic system tailored to meet your specific seismic requirements.
Customizable, modular, and scalable hardware enabling efficient camp operations (node cleaning, charging and data harvesting) for crews requiring up to one million channels.
Daily roll rate of 20,000 STRYDE nodes with a single MNDU container or 40,000 nodes with dual MNDU containers for nodes deployed for 28 days. Higher roll rates for shorter node deployments.
Best in class solution for node sensor testing using an integrated shaker table.
Industry leading HSE and operational efficiency achieved by eliminating manual handling of individual nodes in camp.
Reduced CAPEX and OPEX costs on receiver equipment and survey operations, enabled by small, lightweight, and low-cost receiver technology and scalable node handling hardware.
The small size of a STRYDE node makes burial quick and easy. Burial ensures the highest possible data quality through optimal coupling and attenuation of surface noise, and ensures dataset completeness by reducing risk of interference or theft. Burial also allows obstruction-free source operations for maximum productivity.
The affordability of the STRYDE seismic system allows users to achieve a significantly greater trace density for any given budget, leading to a significant uplift in seismic image quality.
The lightweight and ergonomic design of the node and deployment and retrieval equipment means projects that use STRYDE are delivered faster, with smaller field teams, operating fewer and lighter vehicles, and with minimal line preparation and remediation effort and expense.
The MNDU is a customizable containerized solution tailored to your project requirements.
Each container accommodates up to six Nest Racks, enabling high-efficiency, large-scale seismic operations with spread rotation rates of up to 20,000 channels per day. For even greater capacity, two MNDUs can be operated simultaneously, allowing up to 40,000 channels to be rolled daily.
Each Nest Rack can charge and harvest 540 nodes simultaneously. The Pro System™ MNDU container can be equipped with up to six Nest Racks, to give a total capacity of 3,240 nodes.
An ergonomic motorised lifting system to allow a single operator to safely handle magazine trays in and out of the node test system and charging and harvesting racks.
Entry and exit rollerbenches are provided to enable efficient movement of nodes into and out of the container.

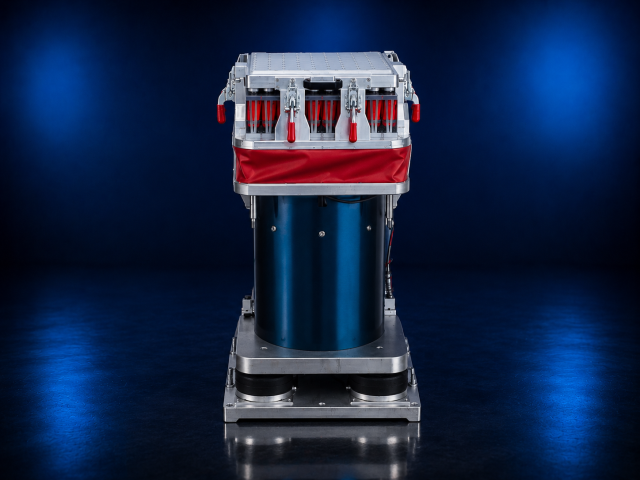

A node test system is provided for periodic testing of nodes to ensure equipment health.
Easy to use, tailor-made, software for efficient seismic survey field operations, data harvesting, and quality assurance, enabling precision navigation and deployment, 45+ days of autonomous recording, data and metadata quality control and nav-merged data outputs.
A dedicated container housing recording system hardware (workstation, servers, and data storage) and a soundproofed and air-conditioned operator room that provides a comfortable environment for system monitoring, data management, and QC tasks.
The node cleaning container is equipped with a dedicated cleaning area and fitted with ergonomic lift, washing and drying stations, racks and air-conditioning - allowing up to 40,000 nodes to be cleaned per 24 hours.
Discover how STRYDE’s containerized nodal seismic system has enabled AGS LLC to deliver the world’s largest nodal seismic survey for CCED Oman.
The world’s smallest and lightest autonomous nodal seismic recording instruments. Supplied in multiples of 90 units.
Discover our nodal technology
A handheld device providing a communications link between the STRYDE Navigator App and STRYDE Nodes™, enabling nodes to be deployed and retrieved effectively. Supplied with a silicone protective sleeve.
A node test system is provided for periodic testing of nodes to ensure equipment health.
